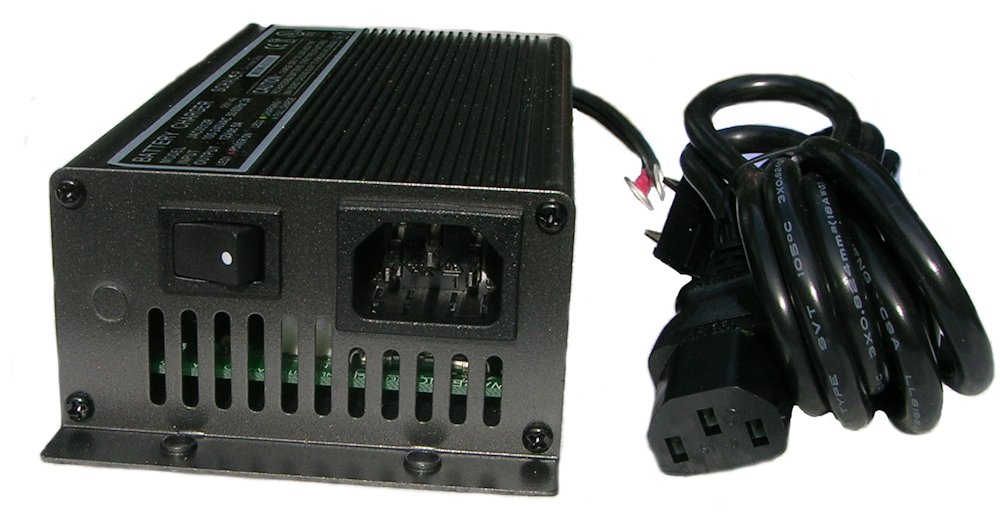

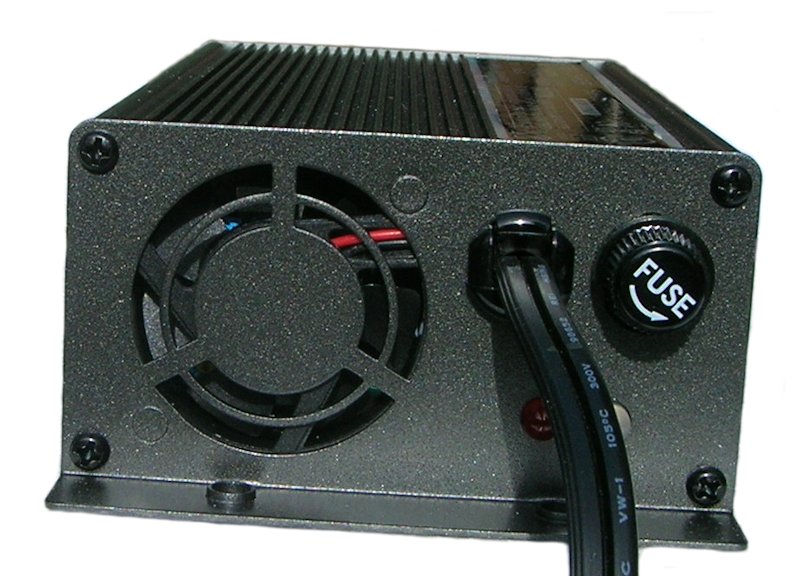

Schauer JAC0512 12 Volt 5 Amp Battery Charger

The Japlar Schauer JAC0512 charger is ideal for bulk charging 12 volt batteries (AGM or wet) up to about 50 amp hour (ah), or as a floating charger (long term maintenance) for batteries 100 ah or more. This is a durable, aluminum cased unit, switch mode, 3 stage, universal input. Typical applications include 17 to 35 amp hour sealed lead acid batteries (AGM) used in electronic/security systems, mobility (wheelchair/scooter), etc. They are excellent for use on deep cycle batteries, and 12 volt systems with a constant or intermittant current drain (power supply type situation). Use of the Schauer JAC0512 as a float charger for larger batteries (up to 8D size) during periods without use is also appropriate.

Click image for larger picture, "Back" button to return

Part#: JAC0512

Schauer 12 Volt 5 Amp
3 Stage Charger

$78

Specifications:		Features:
Dim (LxWxH):	7.0 x 3.5 x 1.8	3 Stage Charging Profile
Actual Weight:	2.2	Mode Indicating L.E.D.
Ship Weight:	3.0	Demand Sensing
AC Input:	100-240 VAC	Reverse Polarity Protection
AC Input:	50/60 Hz	Over Voltage Protection
Output Amps:	5.0	Short Circuit Protection
Absorption:	14.6 VDC	Thermal Protection
Float:	13.5 VDC	True Float Mode
Temperature:	32 F to 120 F	Auto-sensing Universal Input
Approval:	CE, UL pending	For AGM & Wet Lead Acid Batteries
Warranty:	2 Years	100% Duty Cycle

Schauer Battery Chargers

Schauer battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, and therefore less size and weight, and increased efficiency. Schauer switch-mode chargers also will function as a power supply with a battery in the system, and are 100% duty rated, for long term performance. Proper maintenance of lead acid batteries keeps them healthy, and increases their life expectancy.
