Dual Pro PS2 Marine Battery Charger


12 Volt 15 amp dual bank marine charger.

The Dual Pro Charger PS2 marine battery charger, also known as the PRO2, is a dual 12 volt output, 15 amp per bank, temperature compensating battery charger. The Pro series chargers are fully waterproof, and potted for vibration resistance. They feature powder coated aluminum bases suitable for salt water environments. They can be built as a portable charger, which includes alligator clips, $3 per bank more. The independent output battery chargers have separate positive and negative connections for each bank, and a separate charge algorithm microprocessor for each bank. Therefore, the connected batteries may be of differing age, size, charge level, or type (sealed, flooded). This is beneficial in marine applications with a trolling motor battery and a starting battery. It also is suitable for a 24 volt series strings of two 12 volt batteries. The charger does not care how the batteries are wired, series or parallel, after each battery has its own positive and negative connection. This is applicable in situations like 24 volt systems where one of the 12 volt batteries in the string is used for 12 volt loads (like radios, electronics, etc.), where the batteries end up imbalanced. A straight 24 volt output charger used in this situation would see the combined voltage, and overcharge the battery that was not used for the 12 volt load.

The PS2 two output 15 amp battery charger is appropriate for 12 and 24 volt applications where wet or harsh environments are usual, or where 30 amps total output is desired. They have flanges for easy mounting, and are water, vibration, and temperature safe. They will handle flooded and AGM batteries, mixed and matched, and can be ordered with true gel battery specific microprocessors. They can be used in marine applications with a starting battery and a trolling motor battery, or two 12 volt batteries in parallel, or two 12 volt batteries in series for a 24 volt trolling motor. The Pro series 15 amp marine battery charger series is preferred by tournament fishermen, as the amp rate is sufficient for a reasonably quick recharge in an afternoon or evening. They are well built chargers, which can be mounted and hard wired in severe duty applications. They are also a US built product, which is uncommon these days.

For more information see our Battery Charging Tutorial


   Click image for larger picture, "Back" button to return

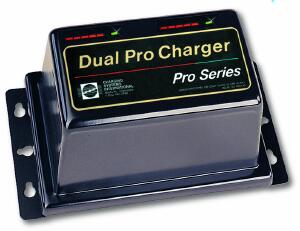

PS2 Charger Part#: PS2

Dual Pro 12 Volt
PS2 Charger

$290


FREE GROUND SHIPPING ON THIS MARINE CHARGER!!


Specifications:  Features:
Dim (LxWxH):11.5 x 6.5 x 6.0 Fully Waterproof
Actual Weight:17.0 Overcharge Protection
Ship Weight:19.0 Reverse Polarity Protection
AC Input:115 VAC Temperature Compensation
Output:15/15 Amps Ignition Protected
Banks:2 Short Circuit Protected
Approvals:CE LED Readout
Approvals:USCG 33 CFR183.410 Made In USA
Warranty:3 Years Float Mode

Accessories:

5 foot cable extension 10 foot cable extension 15 foot cable extension
$23
Dual Pro 5 Foot
Charger Cable Extension
CCx5
$27
Dual Pro 10 Foot
Charger Cable Extension
CCx10
$31
Dual Pro 15 Foot
Charger Cable Extension
CCx15


Any of the following add about 2 days build time, and must be called in:

For portable units, add $10.

Available with microprocessor for true gel batteries, no additional cost.




Be sure to see our battery charging tutorial.
