Schauer JAC1548LFP 15 Amp 48 Volt Lithium Battery Charger
The Schauer JAC1548LFP LiFePO4 charger is ideal for bulk charging 48 volt lithium batteries about 80 amp hour (ah) and up. This is a durable, aluminum cased unit. The JAC1548LFP features an auto-sensing input 115/230 240 VAC, and is rated for a 100% duty cycle. This unit comes with the industry standard 50 amp Anderson SB50 connector, in gray. Additional connectors are below, or the connector can be cut off and the charger hardwired. These are not rebranded lead acid units, but specific lithium charge profiles, charge-to voltage, and shut off. If the battery voltage drops to float level, charger will come on and maintain at float. Charges to full voltage everytime connected. Factory set at 3.6 volts per cell, can be factory set to specific battery brand specs.

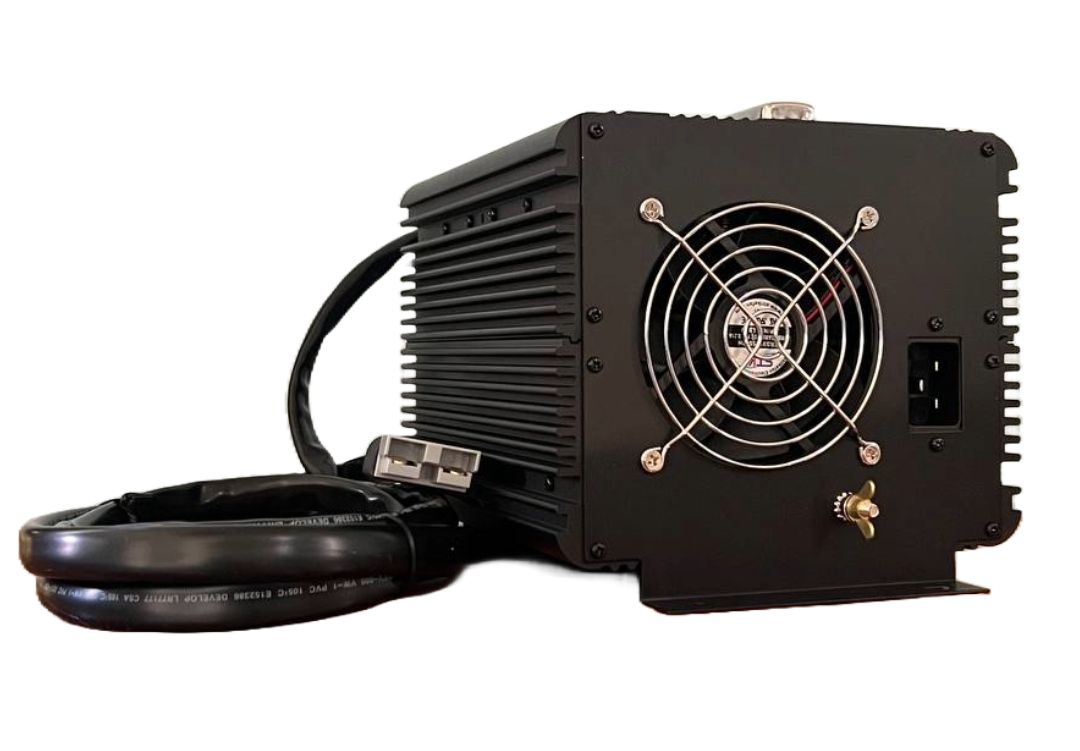

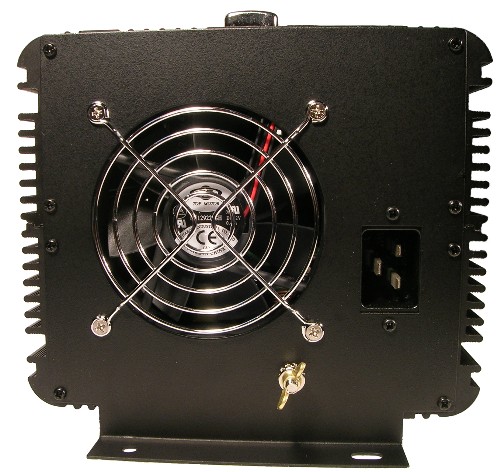

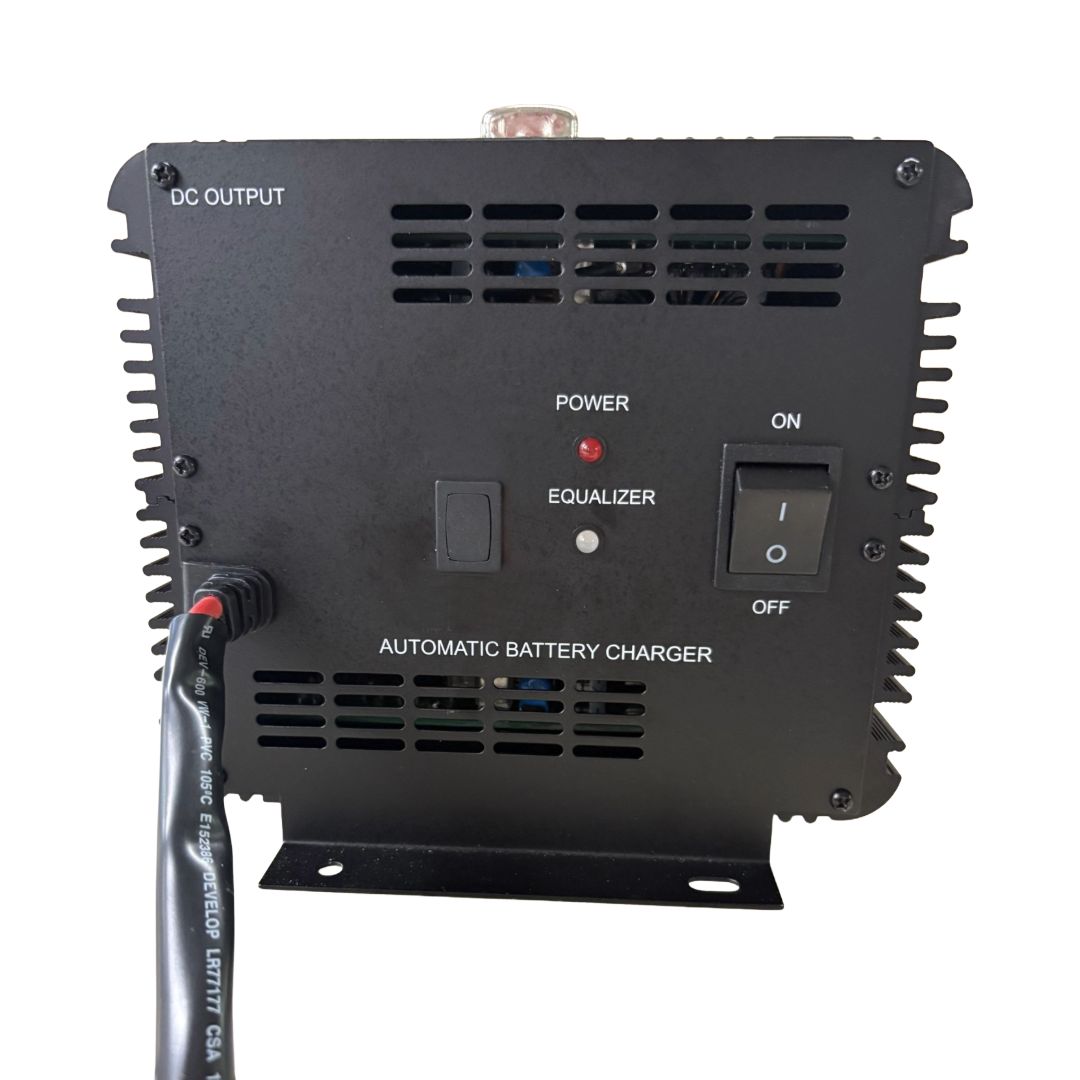

Click image for larger picture, "Back" button to return
|
|
|
Part#: JAC1548LFP Schauer 48 Volt 15 Amp Lithium Charger with Gray SB50 Connector $382 |
|
Add to Cart
|
View Cart
|
CHARGER WITH APPROPRIATE GOLF CART CONNECTOR. Note that the round ClubCar and Star Car connectors are NOT the same.
|
|
|
Lithium Charger with EZGO TXT Notched Pigtail $360 |
Add to Cart
|
|
|
|
Lithium Charger with EZGO RXV Pigtail $360 |
Add to Cart
|
|
|
|
Lithium Charger with ClubCar Round 3 Pin Pigtail May require wiring mods to the cart $360 |
Add to Cart
|
|
|
|
Lithium Charger with Crowsfoot Pigtail $360 |
Add to Cart
|
|
|
|
Lithium Charger with Yamaha 2 Pin Pigtail $360 |
Add to Cart
|
|
|
|
Lithium Charger with Yamaha 3 Pin Pigtail $360 |
Add to Cart
|
|
|
|
Lithium Charger with STAR Round 3 Pin Pigtail $360 |
Add to Cart
|
| Specifications: | Features: | |
| Dim (LxWxH): | 11.25 x 7.0 x 6.375 | Multi Stage Charging Profile |
| Actual Weight: | 12.0 | Mode Indicating L.E.D. |
| Ship Weight: | 13.0 | Low Start Voltage (less than 4 volts) |
| AC Input: | 100-240 VAC | Reverse Polarity Protection |
| AC Input: | 50/60 Hz | Over Voltage Protection |
| Output Amps: | 15.0 | Short Circuit Protection |
| Charge to: | 57.6 VDC | Thermal Protection |
| Float: | 53.6 VDC | Fan Cooling |
| Temperature: | 32 F to 120 F | Auto-sensing Universal Input |
| Approval: | CE, UL pending | For Lithium Batteries |
| Warranty: | 2 Years | 100% Duty Cycle |
48 Volt Yamaha cart receptacle $62.
Helpful Accessories For Your Cart:
|
|
|
Run 12 Volt Accessories - 16 Amp Samlex IDC-200C-12 30 to 60 VDC to 12.5 VDC Converter |
Get Maximum Battery Life and Maximum Battery Power 48 Volt PowerPulse Desufator |
Schauer Battery Chargers
Schauer battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, and therefore less size and weight, and increased efficiency. Proper maintenance of lithium batteries keeps them healthy, and increases their life expectancy.
