Dual Pro CRS1 Charge on the Run Charger


12 Volt Engine Battery to 12 Volt Auxilliary Battery

The Dual Pro CRS1 Charge on the Run Charger is a marine unit which takes engine alternator output from the starting battery, and passes it to an auxilliary 12 volt battery. The unit does not start the current flow until the starting battery reaches a factory preset voltage, and then monitors the starting battery, and shuts off current flow to the secondary battery, if the starting battery starts to lose voltage. When the auxilliary battery reaches a preset voltage, the unit shuts off. Formerly known as the ProXtra I.

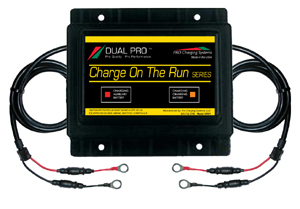

   Click image for larger picture, "Back" button to return


CRS1 Part#: CRS1

Charge on the Run
12 Volt Charger

$199



Specifications:  Features:
Dim (LxWxH):4 x 6 x 5.5 Waterproof
Actual Weight:4.0 Ignition Protected
Ship Weight:5.0 Reverse Polarity Protection
Input:Alternator LED Indicators
Output:12 Amps 5 Foot Output Cable
Approvals:ISO 8846-Marine Made In USA
Warranty:3 Years

Applications for the CRS1 Onboard Charger

This unit was designed for marine applications, specifically for trolling motor and similar uses, where a battery that is cycled can benefit from charging while the boat is on the fly under engine power from one location to another. The features and functions make the unit suitable for any similar situation, where 12 volt engine charging current is available for an auxilliary battery. Vans and trucks with house batteries, mobile vendors, mobile testing equipment, etc., can make good use of this charger.




Be sure to see our battery charging tutorial.
