Schauer TB5024WF 24 Volt 5 Amp Telecommunications Battery Charger

The Schauer TB5024WF is designed for Telecommunications and Remote Telemetry applications in harsh environments. Service locations vary from arctic ice to desert sand. Suitable for commercial and industrial applications where equipment enclosures cannot be vented. This fully-automatic battery charger reduces the charge rate to a safe maintaining rate as the battery is charged, maintaining the batteries in fully charged condition while supporting the connected equipment load. This unit is temperature compensating, and features reverse polarity and short circuit protection, and low battery start. The TB5024WF is rated for continuous duty at 24 volts, 5 amps.

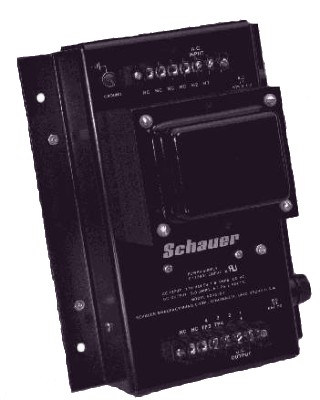

Click image for larger picture, "Back" button to return

Schauer 24 Volt 5 Amp Telecommunications Charger

Part#: TB5024WF

Schauer 24 Volt 5 Amp
Battery Charger

$580

Specifications:		Features:
Dim (LxWxH):	10.25 x 7.70 x 5.5	Temperature Compensation
Actual Weight:	13.0	Low Battery Start
Ship Weight:	14.0	Fully Automatic
AC Input:	120 VAC	Reverse Polarity Protection
AC Input:	60 Hz	Harsh Environments
Input Amps:	1.8	Short Circuit Protection
Preset Voltage:	27.6 VDC (wet/AGM)
Temperature:	-30C to 65C
Output Amps:	5.0

Schauer TB5024WF

This is an industrial charger, specifically built for telecommunication and remote telemetry applications, with 24 volt systems. It will maintain the batteries in a fully charged condition while supporting the connected equipment load. Temperature compensation adjusts charge voltage to compensate for ambient temperature changes from -30C to 65C, an important function for a charger built for harsh environments.
