Schauer JAC0524 24 Volt 5 Amp Battery Charger

The Schauer JAC0524 is ideal for bulk charging 24 volt batteries (AGM or wet) up to about 50 amp hour (ah), or as a floating charger (long term maintenance) for 24 volt battery systems 100 ah or more. This is a durable, aluminum cased unit. Typical applications include mobility (wheelchair/scooter), etc., and mobile carts using a 24 volt battery system for monitoring or computer/printer use. The JAC0524 is excellent for use on deep cycle batteries, and 24 volt systems with a constant or intermittant current drain (power supply type situation). Use as a float charger for larger battery packs (up to 8D size) during periods without use is also appropriate. This model usually comes with ring terminals. A 3 pin XLR connector is available.

   Click image for larger picture, "Back" button to return

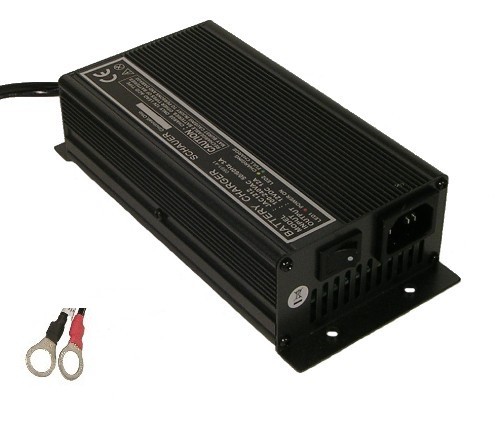

Schauer 24 Volt 5 Amp Charger top Schauer 24 Volt 5 Amp Charger front Schauer 24 Volt 5 Amp Charger back Part#: JAC0524

Schauer 24 Volt 5 Amp
3 Stage Charger


To have a 3 pin XLR connector installed, add to cart before checking out. XLR connector Part#: XLR

Install XLR Connector


Specifications:  Features:
Dim (LxWxH):7.0 x 3.5 x 1.8 3 Stage Charging Profile
Actual Weight:2.2 Mode Indicating L.E.D.
Ship Weight:3.0 Demand Sensing
AC Input:100-240 VAC Reverse Polarity Protection
AC Input:50/60 Hz Over Voltage Protection
Output Amps:5.0 Short Circuit Protection
Absorption:29.2 VDC Thermal Protection
Float:27.0 VDC True Float Mode
Temperature:32 F to 120 F Auto-sensing Universal Input
Approval:CE, UL pending For AGM & Wet Lead Acid Batteries
Warranty:2 Years 100% Duty Cycle

Schauer Battery Chargers

Schauer battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, and therefore less size and weight, and increased efficiency. Schauer switch-mode chargers also will function as a power supply with a battery in the system. Proper maintenance of lead acid batteries keeps them healthy, and increases their life expectancy.
