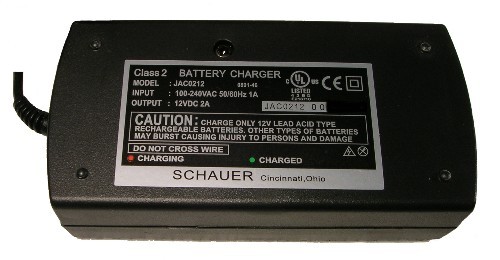

Schauer JAC0212 12 Volt 2 Amp Battery Charger

The 2 amp JAC0212 battery charger is a universal input (100 to 240 VAC) microprocessor controlled 3 stage battery charger. This Schauer charger is ideal for bulk charging 12 volt lead acid batteries (AGM or wet) up to 10 to 12 amp hour (ah), or as a floating charger (long term maintenance) for batteries from 10 ah to 200 ah. Typical applications include motorcycle, lawnmower, jetski, ATV, and snowmobile batteries. Small sealed lead acid batteries (AGM) are an excellent application as well, such as alarm system backup, computer backup (UPS), 12 volt game feeders, riding toys with 12 volt batteries, etc. The Schauer JAC0212 is an excellent charger for use as a float charger for larger batteries during periods without use (like a deep cycle marine battery over the winter).

Click image for larger picture, "Back" button to return

Part#: JAC0212

Schauer 12 Volt 2 Amp
3 Stage Charger

$45

Specifications:		Features:
Dim (LxWxH):	5.6 x 2.4 x 1.3	3 Stage Charging Profile
Actual Weight:	0.9	Mode Indicating L.E.D.
Ship Weight:	2.0	Demand Sensing
AC Input:	100-240 VAC	Reverse Polarity Protection
AC Input:	50/60 Hz	Over Voltage Protection
Output Amps:	2.0	Short Circuit Protection
Absorption:	14.6 VDC	Thermal Protection
Float:	13.5 VDC	True Float Mode
Temperature:	32 F to 120 F	Suitable for Sealed Lead Acid (AGM) Batteries
Approval:	CE, UL pending	Suitable for Wet Lead Acid Batteries
Warranty:	2 Years	Auto-sensing Universal Input

Schauer Battery Chargers

Schauer battery chargers are microprocessor controlled, fully automatic electronic devices, which use switch-mode technology to change AC input voltage to DC output voltage at much faster rates than traditional ferroresonant type chargers, which allows for a much smaller transformer, and therefore less size and weight, and increased efficiency. Schauer switch-mode chargers also will function as a power supply with a battery in the system, and are universal input (100 to 240 VAC), making them excellent for travel or inclusion in devices intended for world wide distribution. Proper maintenance of lead acid batteries keeps them healthy, and increases their life expectancy.

Frequently asked questions about battery charging

Be sure to check out our Tutorials!
