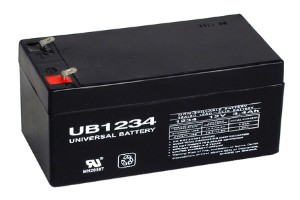

12 Volt 3.4 Amp Hour AGM

12V 3.4 Amp Hour UB1234-D5740

UB1234 Part#: UB1234

12 Volt 3.4 Amp Hour
AGM Battery
Case of 10
$180

Specifications:  Features:
Dim (LxWxH):5.25 x 2.63 x 2.44 Valve Regulated AGM
Actual Weight:3.20 Spill Proof
Voltage:12 Maintenance Free
Amp Hour:3.4 Lower Self Discharge
Charge Voltage:14.4 - 14.7 Vibration Resistant
Float Voltage:13.6 - 13.8 No Corrosion
Operating Temp-4 F to 104 F Non Hazardous
Warranty:1 Year ABS Case
Approvals:DOT, IATA, ICAO
Terminal:F1

Universal Small Sealed Lead Acid Batteries

This 12 volt 3.4 amp hour AGM sealed lead acid battery is the valve-regulated type (sometimes called "sealed" or maintenance-free), which fixes the acid electrolyte in an absorptive fiberglass mat. Most of the sealed batteries under about 30 amp hours are AGM, or absorbed glass mat, though they are frequently erroneously referred to as 'gels'. This 3.4 ah size is found in alarms, industrial equipment, scientific devices, toys, etc. They are sometimes only used as a backup battery, constantly float charged, only providing power if the primary power (AC) goes out. In this role they routinely last 5 years, maybe more. In cyclic applications, where they are discharged, the life will be a funtion of the depth of discharge, and the frequency. A routine 100% discharge will give about 250 cycles, whereas a routine 30% discharge will give about 1250 cycles. So keeping lead acid batteries charged whenever possible, extends their life. Using a microprocessor controlled charger is part of this proper battery maintenance, for maximum life. We recommend opportunity charging, for example, in a wheelchair or scooter application, where the batteries are charged each night, or even during the day when not in use, to keep the average depth of discharge above 50%, which helps with longer cycle life.

For more info, see our Charging and Battery tutorials.



Be sure to check out our Tutorials!
